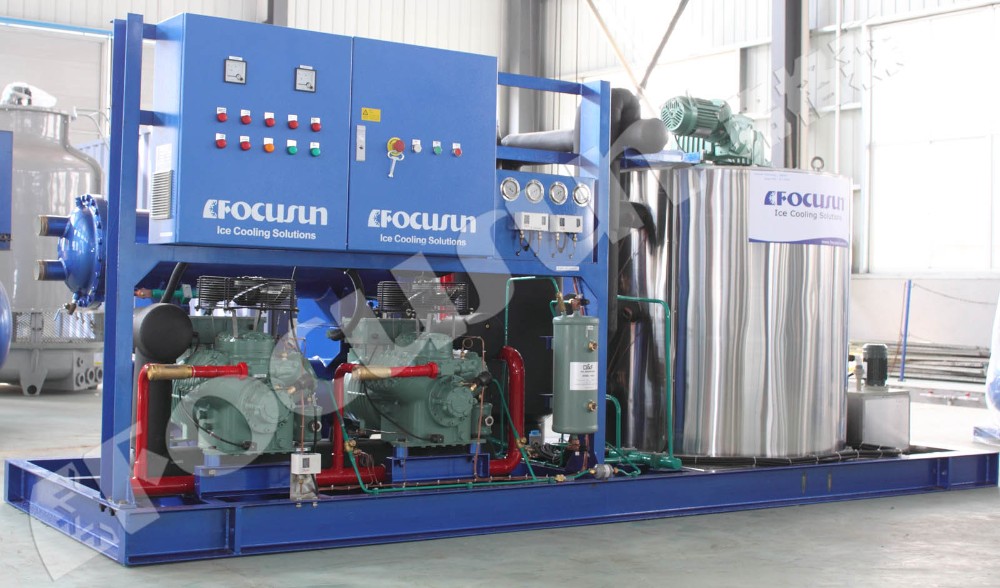

Industrial Cooling Solution 10T/Day Containerized Flake Ice Machine with Air Cooling

Name: Industrial Cooling Solution 10TDay Containerized Flake Ice Machine with Air Cooling
Brand: FOCUSUN
Price: 38 USD

Quality Industrial Cooling Solution 10T/Day Containerized Flake Ice Machine with Air Cooling wholesale

Applicable Industries : Retail, Food Shop, Fishery Industry

Condition : New

Place of Origin : Shanghai, China

Brand Name : FOCUSUN

Ice Shape : Flake Ice

Voltage : 380V/3PH/50Hz

Power : 45kw

Dimension(L*W*H) : 4500*2500*2500mm

Weight : 4500 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : Evaporator, Condenser, Compressor

Compressor brand : Bitzer, Refcomp

Application : Industrial

Name : ice flake maker

Compressor : Bitzer

Product name : flake ice machine

Refrigerant : R404a/R22

Keyword : ice flake plant

Ice size : 50*50*2

Type : Automatic Ice Maker

Cooling way : Air Cooling/water cooling

Control system : Siemens Fully Automatic Control System

Material : Stainless Steel 304

Marketing Type : Hot Product

Packaging Details : wooden case

Port : shanghai

Supply Ability : 20 Case/Cases per Month

Price : $38,200.00/cases 1-2 cases

MOQ : 1pc

Contact Now

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

Industrial Cooling Solution 10T/Day Containerized Flake Ice Machine with Air Cooling

Product Description

Product Application

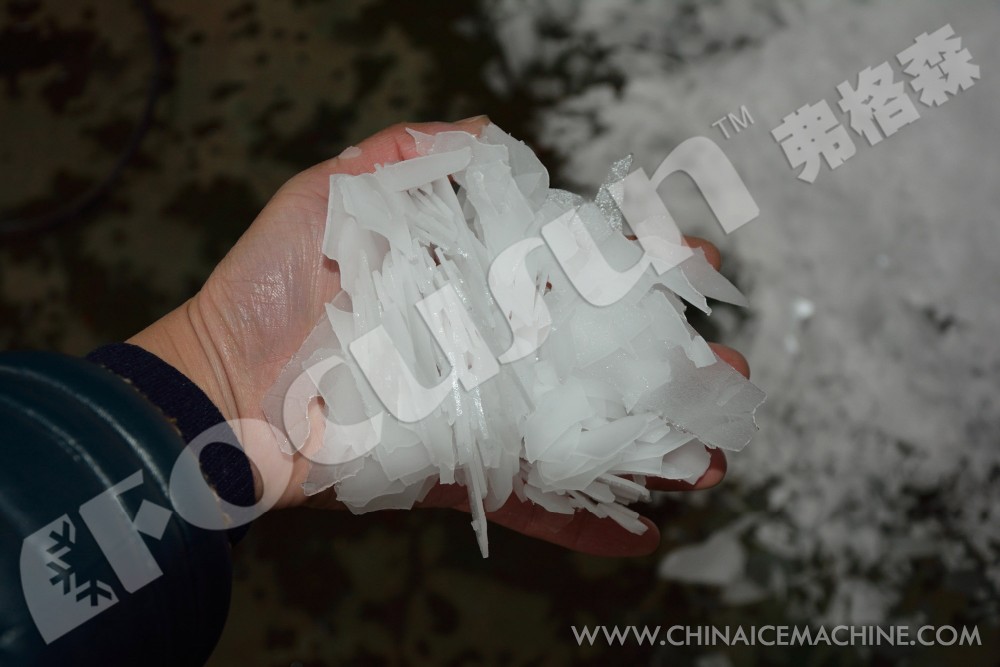

Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.The thin ice can be directly used for stirring and mixing refrigerated materials.No acute edges and corners so it will not damage the surface of the cooled object.

Large contact area and fast cooling speed,easy to crush and mold.

Equipment Features

1)Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.

2)Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.

3)The design of large water receiving plate can prevent water leaking at the bottom of evaporator.

4)Photoelectric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.

5)Direct liquid feeding and dry evaporation, simple&safe to control.

6)Integrated modular design, convenient to install and maintain.

Certifications

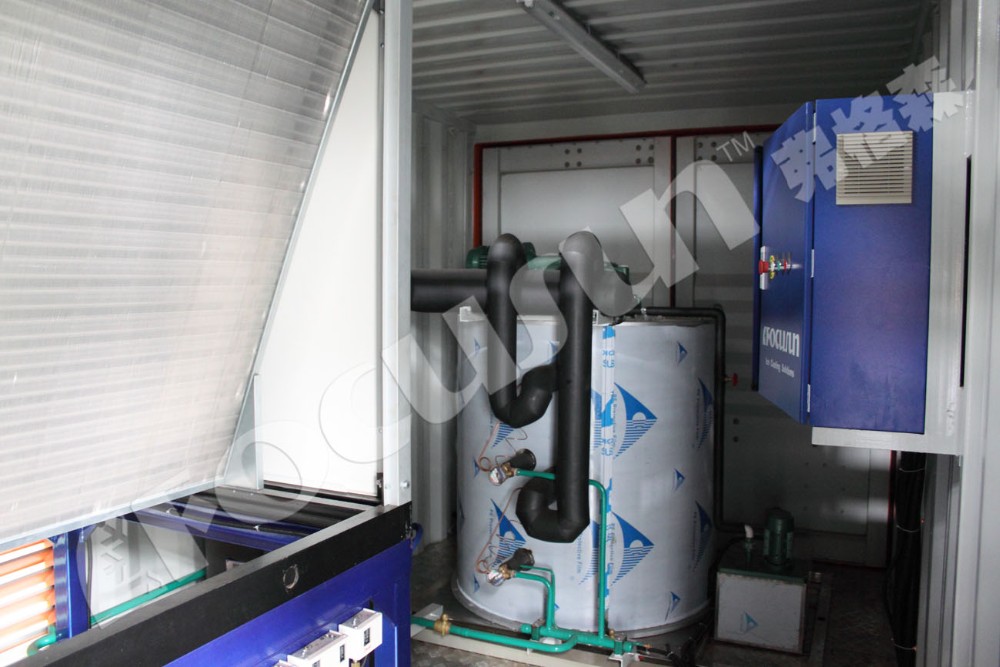

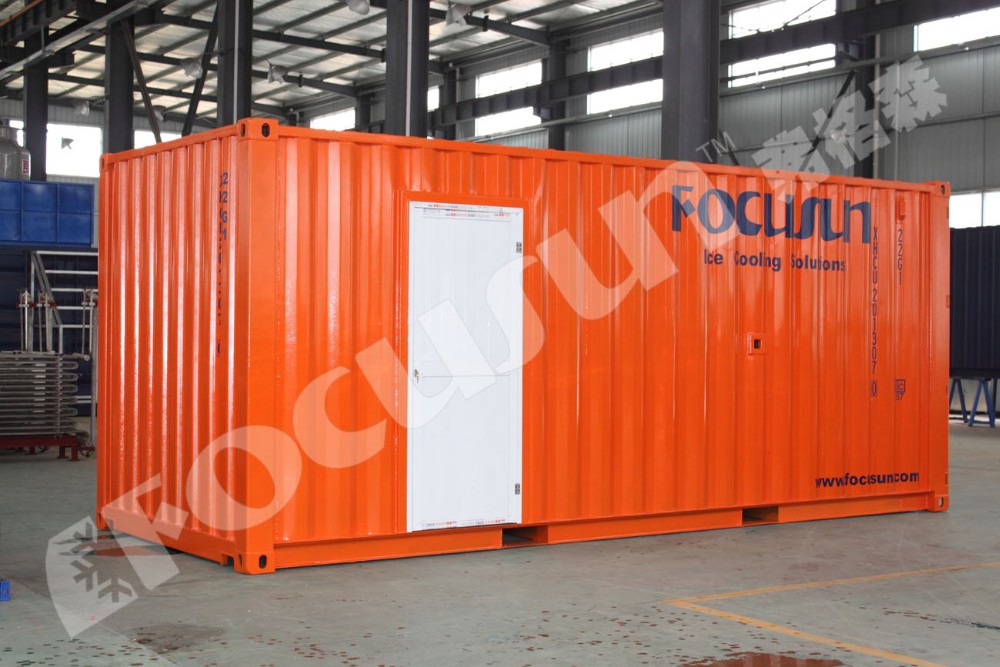

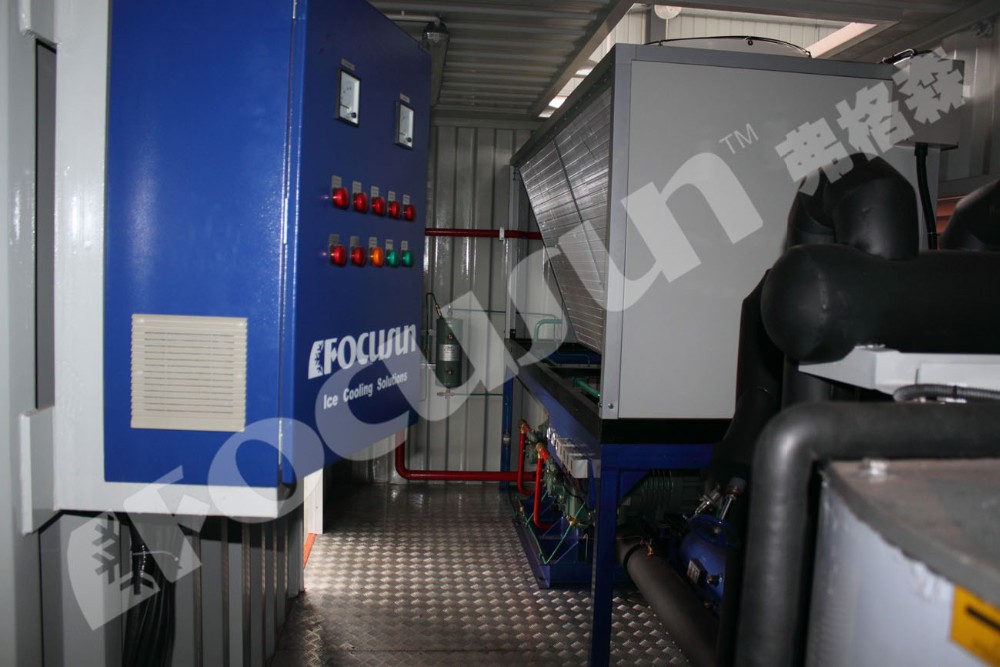

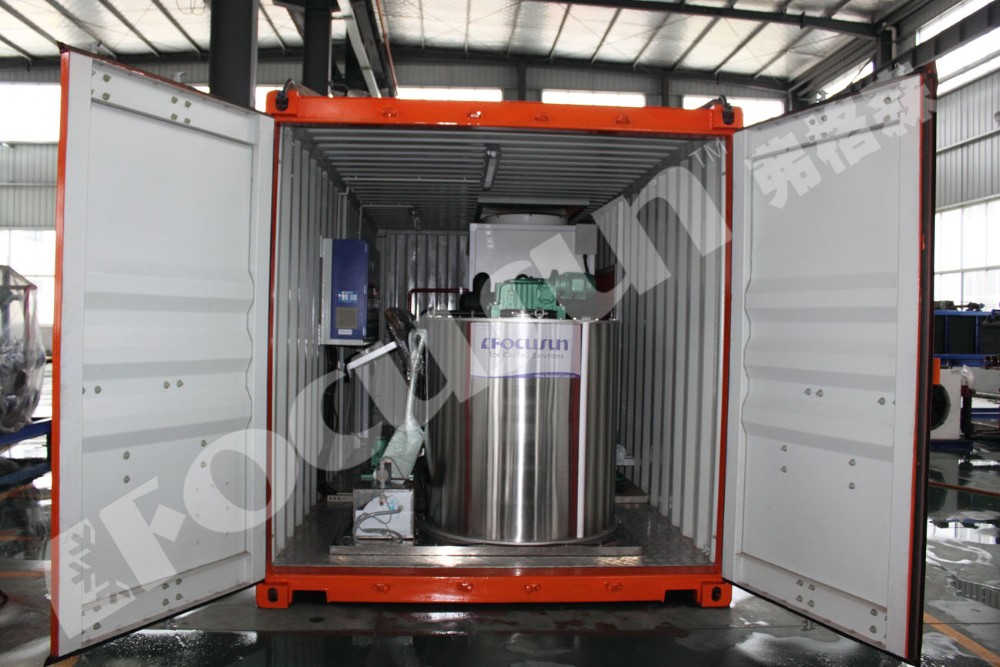

Detailed Images

Machine Parts

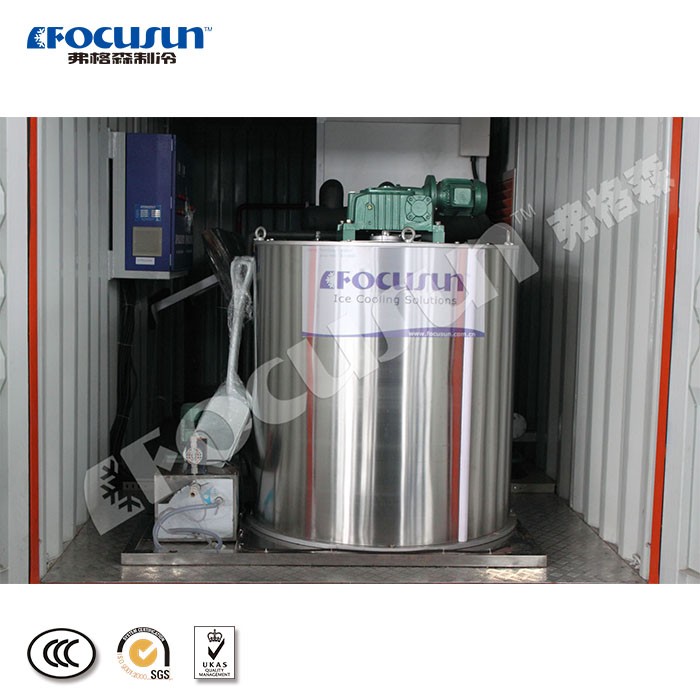

Name: Flake ice evaporator

The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally-scraping ice-making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant

Machine Features

To improve the use ratio of the storage and to avoid ice freezing in the bottom. Focusun provides automatic ice storage system which make the cold air in it cycle though it is filled with ice, so as to maintain the temperature at-8℃.

Ice Application

Flake ice is used in concrete mixing, chemical and dye industries, artificial ice snow engineering and artificial skiing field application, dairy production, poultry processing, fruit and vegetable preservation, aquatic processing, meat processing, supermarket preservation.

Standard working condition

Dry bulb temperature is 33 celuis and water inlet temperature is 20 celuis. The above mentioned parameter will be changed subject to technical innovation without further notic.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Factory visit
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.

Packing & Delivery

Packaging
Size	4500 (L) * 2500 (W) * 2500 (D)
Weight	0.5 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
