Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Focusun Refrigeration Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Place of Origin : Shanghai, China

Brand Name : Focusun

Packaging Details : wood case or cotainer

Supply Ability : 50 Unit/Units per Quarter

Price : $47,000.00/units >=1 units

Applicable Industries : Hotels, Food & Beverage Factory, Restaurant, Retail, Food Shop, Other

Condition : New

Ice Shape : TUBE ICE

Voltage : 380V

Power : 20.8kw

Dimension(L*W*H) : 2000*1450*2200mm

Weight : 3000kgs

Warranty : 1.5 years

Key Selling Points : Automatic

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : compressor

After-sales Service Provided : Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Cooling type : water cooling

Refrigerant : R404A

Name : Tube Ice Machine

Application : Fresh-keeping

Compressor : Bitzer

Material : Stainless Steel 304

Ice size : Customized Size

Keyword : Tube ice machine

Type : Automatic Tube Ice Machine

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Showroom Location : None

Marketing Type : Ordinary Product

Port : Shanghai

MOQ : 1pc

Contact Now

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Product Description

Product Application

General Introduction about Focusun :

Focusun is the refrigeration equipment manufacturer leading the peer industry. We mainly produce flake ice machine, tube ice machine, block ice machine, plate ice machine, cube ice machine, water cooling equipment, concrete cooling system, dynamic ice storage system, and all kinds of low temperature ice storage room.
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Tube ice maker machine Features:

Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.

After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.

With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.

The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.

The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.

Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.

Detailed Images
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Machine Parts

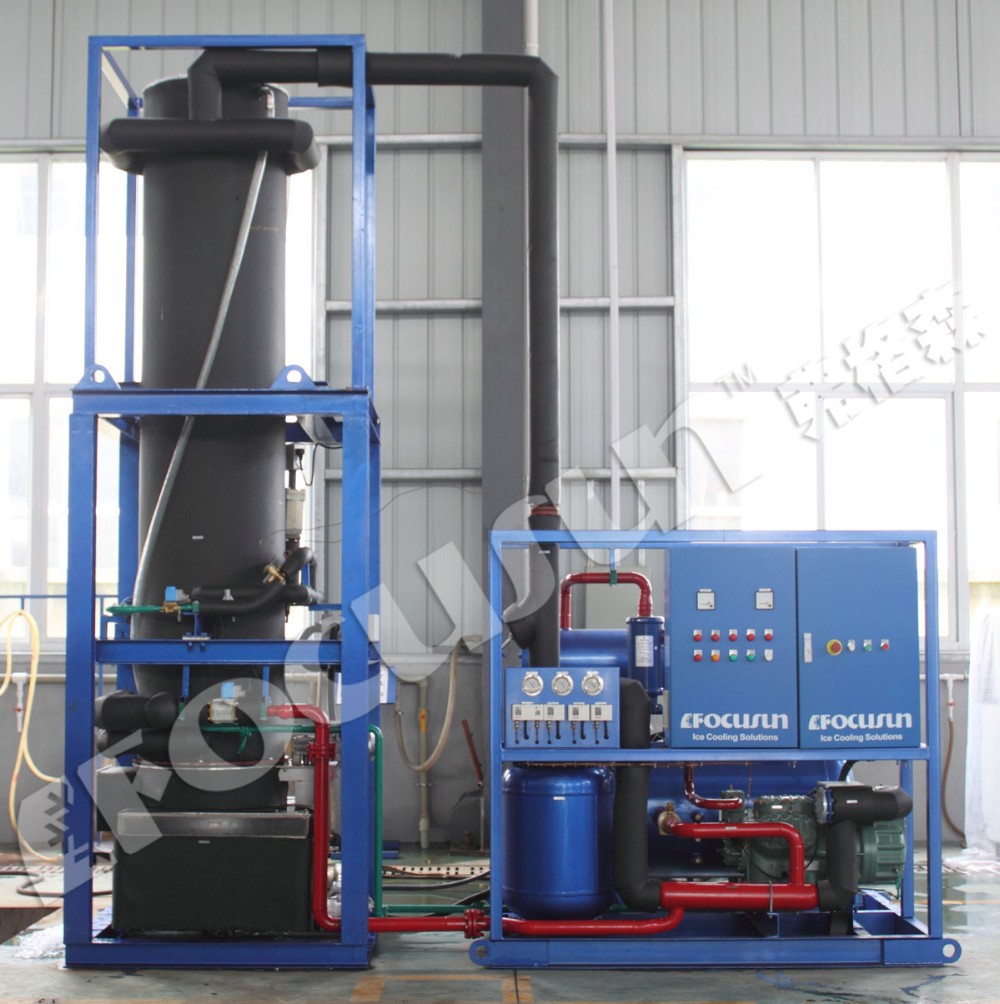

Name: Evaporator module

The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .

Main Features

Acomplete unit with all equipments assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to an electric and water source, the machine can be put into use

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Machine Parts

Name: Ice generator

The main part of the tube ice machine is the ice generator, a vertical shell-and-tube vessel surrounded by a water tank. Special water distributors on top of each tube control an even,spiral supply of water down the inside of the tubes. Expess water is collected in a tank beneath the ice generator and pumped back up to the tank at the top .

Ice Application

Tube ice is widely used in hotels, restaurants, bars, flight kitchens, catering, concrete cooling, chemical industry processing, food production processing, fishing industry and a variety of laboratory and medical applications.

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Certifications
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Factory visit
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.

Packing & Delivery
Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Custom packaging

Please contact for more details.
Contact: Wendy
Phone number:0086 15821912409
Whatsapp/Wechat:0086 15821912409
Skype: ice cooling013

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Package

Fully Automatic PlC Control Tube Ice Machine Stainless Steel 304

Loading and delivery
