Convenient 3T/5T Tube Ice Machine 3ton/day for Convenience Store and D21/28/34mm Ice Size

Name: Convenient 3T5T Tube Ice Machine 3tonday for Convenience Store and D212834mm Ice Size
Brand: Focusun
Price: 23 USD

Quality Convenient 3T/5T Tube Ice Machine 3ton/day for Convenience Store and D21/28/34mm Ice Size wholesale

Applicable Industries : Restaurant, Retail, Food & Beverage Shops, Other

Condition : New

Place of Origin : China

Brand Name : Focusun

Ice Shape : Tube ice machine

Voltage : 220v~440v

Power : 70kwh/ton

Dimension(L*W*H) : 1.6*1.7*3.4

Weight : 1000 KG

Warranty : 1 Year

Key Selling Points : Competitive Price

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : PLC, Compressor

Compressor brand : Bitzer

Application : Industrial, Cold Drinks

Product name : Tube ice machine

Name : Tube ice maker

Keyword : Tube ice

Compressor : Bitzer

Cooling way : Air-cooled

Refrigerant : R404a/R22

Material : Stainless Steel 304

Type : Automatic Tube Ice Machine

Ice size : D21/28/34mm

Marketing Type : Ordinary Product

Packaging Details : container

Port : Shanghai

Supply Ability : 200 Case/Cases per Quarter

Price : $23,800.00/cases 1-2 cases

MOQ : 1pc

Contact Now

Product Description

Product Application

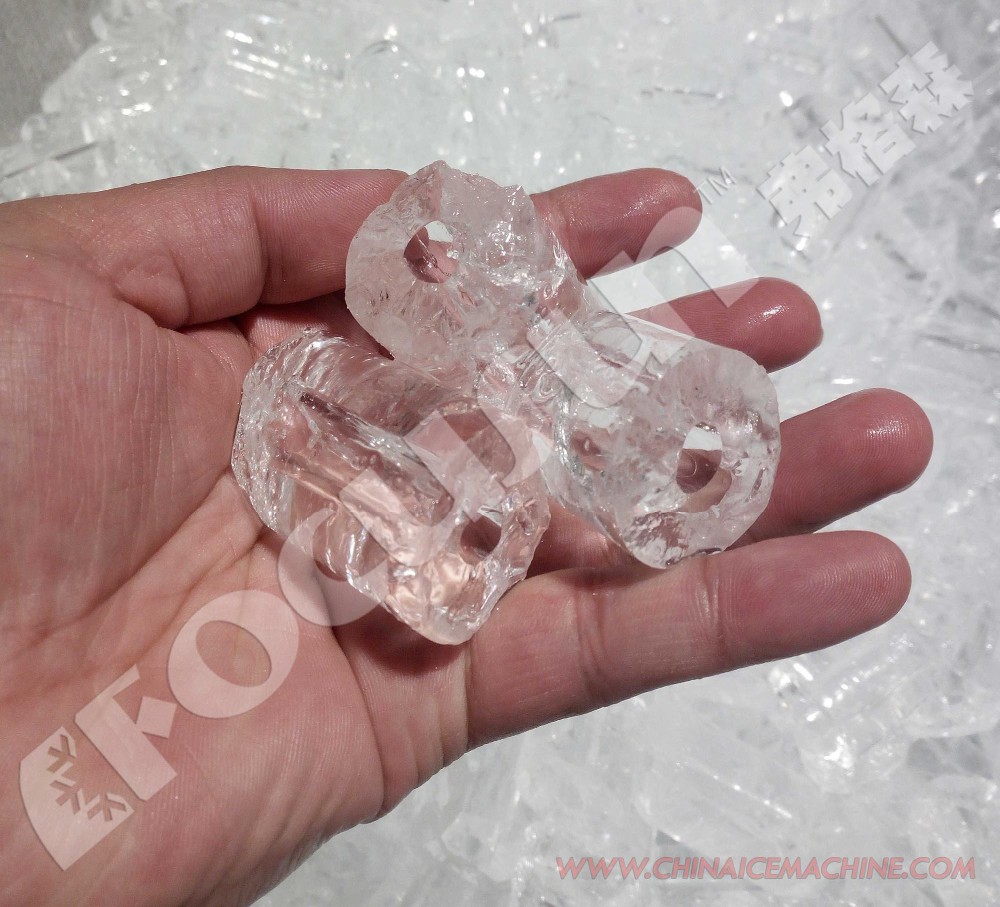

Compared with other kinds of ice, tube ice has the highest density which is pure,difficult to melt and completely conforms to food standards.It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, etc.

Convenient 3T/5T Tube Ice Machine 3ton/day for Convenience Store and D21/28/34mm Ice Size

Main Features

1)Pure German technology and years' research experience in refrigeration.

2)Original Pre-Purify™ patented technology makes ice crystal.

3)All equipment is made of 3D simulation assemble,compact structure, which makes it humanized to operate and maintain.

4)Evaporator adopts SUS304,PE,and aluminum material

5)PLC system controls the ice making process automatically.

Detailed Images

Machine Parts

Name: Evaporator module

The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .

Main Features

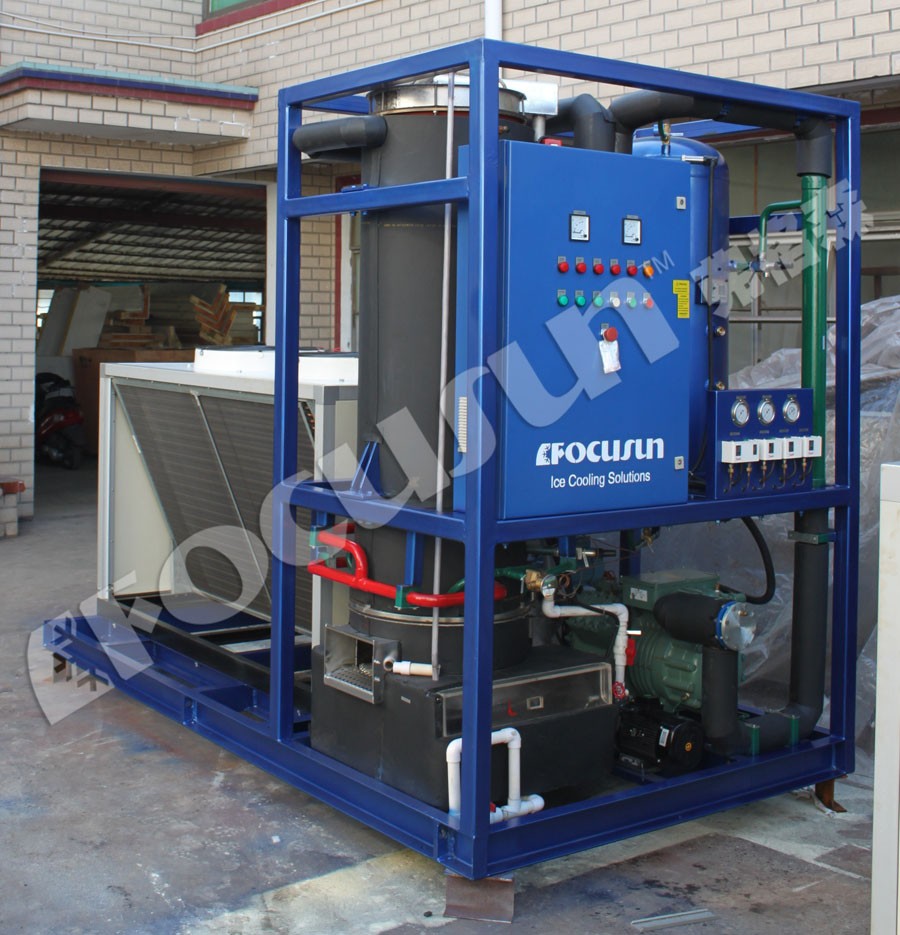

A complete unit with all equipment assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to an electric and water source, the machine can be put into use

Machine Parts

Name: Machine generator

he main part of the tube ice machine is the ice generator, a vertical shell-and-tube vessel surrounded by a water tank. Special
water distributors on top of each tube control an even,spiral supply of water down the inside of the tubes. Expess water is
collected in a tank beneath the ice generator and pumped back up to the tank at the top .

Ice Application

Tube ice is widely used in hotels, restaurants, bars, flight kitchens, catering, concrete cooling, chemical industry processing, food production processing, fishing industry and a variety of laboratory and medical applications.

Application

Technical Parameters

Packing & Delivery

PACKING DETAILS

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Cube ice machine

91.8% Response Rate

Tube ice machine

91.8% Response Rate

Flake ice machine

91.8% Response Rate

Auxiliary Machines

FAQ

1. How can we guarantee quality?
CE,ISO, BV & SGS strictly inspected as per customer requested. Every products pass through good performance test before leaving factory.

2.why choose us？
Over 80 years of experience of engineering and manufacturing in refrigeration industry; Cost-effective Machines: German Technology but with Chinese Price; Own 18 patented refrigeration technologies.Our company have manufactured different types reefer 14 years till now and it is our pleasure if could support your business in the near future.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French

Focusun

Focusun has provided full sets of refrigeration solutions for over ten thousands of clients around the world. We strive to set the highest standard of quality in everything we do. We always want to drive towards “the NEXT” great thing! By constantly challenging ourselves to improve and break new ground. That is why we have gained the acclaim and confidence of our clients and partners.
